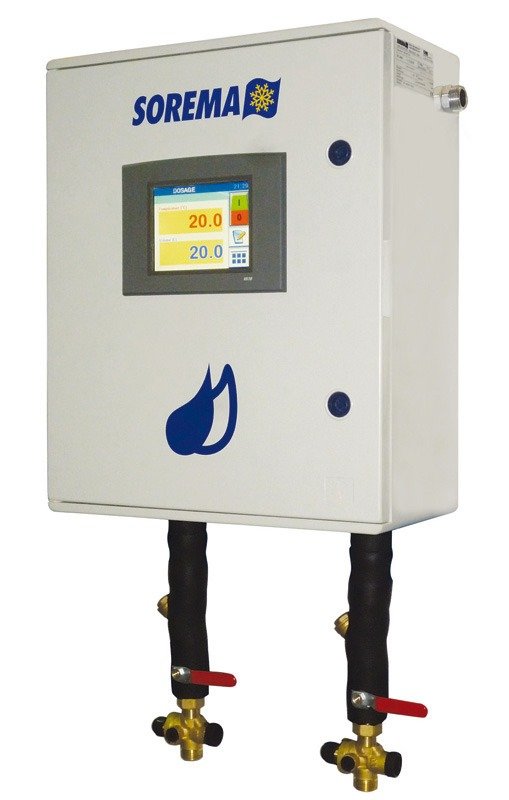

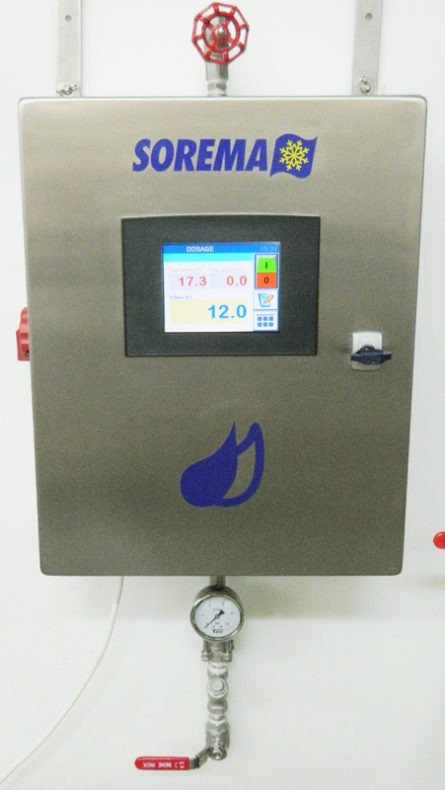

DMT-PROG Programmable Mixer Dispenser

The DMT-PROG automatic and programmable mixing dispenser comes with a dispensing kit (hose + spout), pressure reducer, set of filters, and inlet valves. It provides automatic water dosing with electronic programming of the desired temperature (mixing hot and cold water).

⚠️ This dispenser must be supplied by a water chiller equipped with a pump. Required pressure: 2 bar

  • Programmable volume and temperature
  • 3.5″ touchscreen with user-friendly interface
  • Recipe memory
  • Dosing unit: 0.1 liter
  • Mixing of 2 or 3 water sources at different temperatures
			array(2) {
  ["link_text"]=>
  string(11) "Enquire Now"
  ["link_url"]=>
  string(0) ""
}
			array(2) {
  ["link_text"]=>
  string(17) "Download Brochure"
  ["link_url"]=>
  string(73) "https://jbandbrothers.com.au/wp-content/uploads/DMT-PROG-UK-20-SOREMA.pdf"
}
			array(2) {
  ["link_text"]=>
  string(10) "Watch Demo"
  ["link_url"]=>
  string(0) ""
}


Dimensions

  • HEIGHT: 810 mm
  • WIDTH: 501 mm
  • DEPTH: 220 mm

Operating conditions:

  • Temperature range: 1°C to 65°C
  • Nominal flow rate: 15 liters/minute at 2 bar
  • Dosing accuracy: ±1%
  • Power supply voltage: 240V single-phase 50/60Hz

Accessories included:

  • Outlet hose with spout and hook for dough mixer
  • Pressure reducer
  • Filter set
  • Inlet valves for dispenser

Options:

  • Flow rate of 35 L/min or 60 L/min
  • Mixing of 3 water sources (chilled water, mains water, hot water)
  • Communication modules (RS 232, RS 485, ETHERNET connection)

Overall dimensions:
W. 501 mm × D. 220 mm × H. 810 mm
Weight: 35 kg
