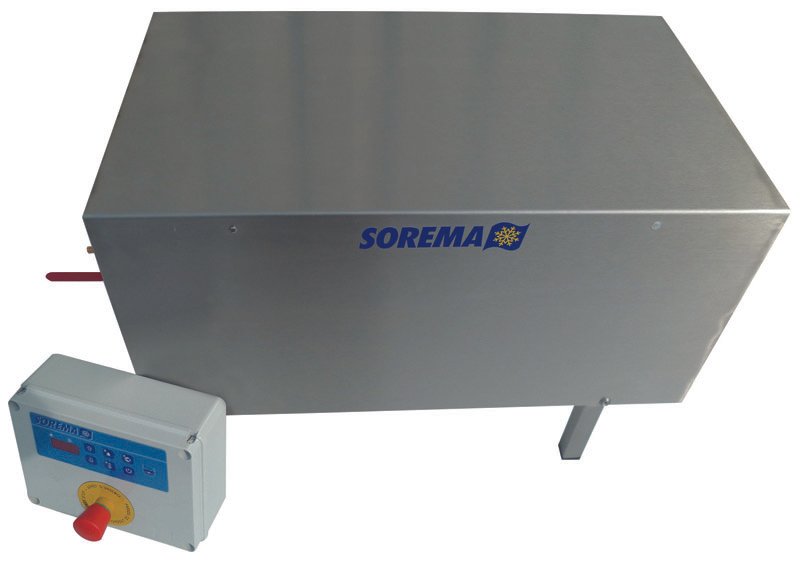

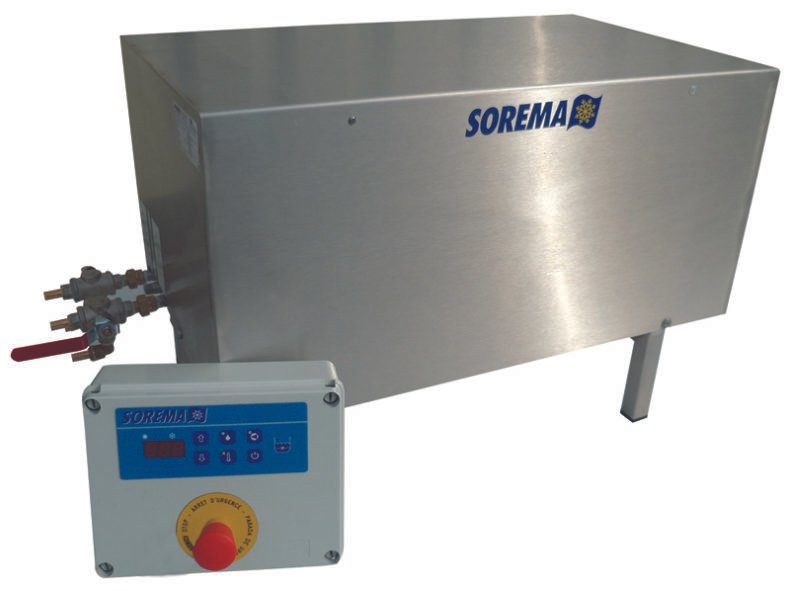

SOREMA SMC Series Water Cooler – with air-water heat exchanger from 600 to 4800

Stainless steel industrial water cooler with atmospheric pressure tank, without refrigeration unit, using an air/water heat exchanger.
Ideal for cooling a water loop using ambient air.
Designed for recycled water cooling of packaging machines (e.g., tray sealers and thermoformers) placed in refrigerated environments.

  • Air-based cooling
  • Simplified installation close to the machines
  • Low power consumption
  • Compact system
  • Automatic water refill
			array(2) {
  ["link_text"]=>
  string(11) "Enquire Now"
  ["link_url"]=>
  string(0) ""
}
			array(2) {
  ["link_text"]=>
  string(17) "Download Brochure"
  ["link_url"]=>
  string(0) ""
}
			array(2) {
  ["link_text"]=>
  string(10) "Watch Demo"
  ["link_url"]=>
  string(0) ""
}


Dimensions

  • Height: 510 mm — Width: 850 mm — Depth: 450 mm
  • Height: 570 mm — Width: 810 mm — Depth: 660 mm

Cooling process

  • Water cooled by heat exchange with ambient air (ambient +2°C to +12°C)

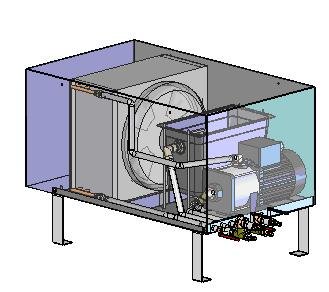

Construction & Features

  • Stainless steel casing and frame on legs
  • Open stainless steel buffer tank with loop return and cover
  • Allows purging of machines using air-blast flushing
  • Automatic filling via float valve
  • Water level safety: float switch detects lack of water in the tank
  • Air/water heat exchanger with fan coil type battery
  • Water distribution pump

Options

  • Backup “lost water” valves

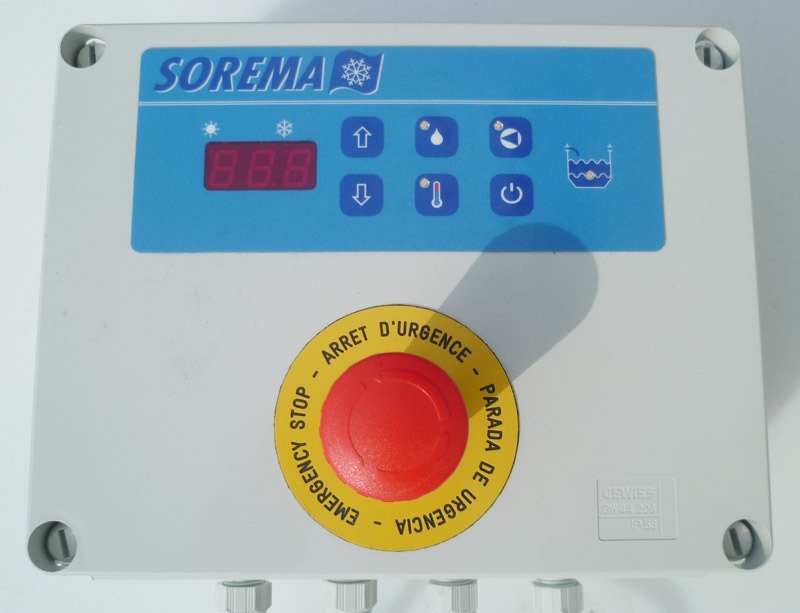

  • Electrical control cabinet

Performance

  • Maximum absorbed electrical power: 625 W – 775 W
  • Hydraulic connections: 12–17 (3/8″)
  • Water flow rate: 300 – 400 liters/hour
  • Empty weight: 40 – 53 kg
