Dimensions
- HEIGHT: 1370 mm
- WIDTH: 1660 mm
- DEPTH: 830 mm
- Clearance height required: +500 mm
Drawing capacity : 110 to 250 liters/hour
- Inlet water temperature: +20°C
- Outlet water temperature: +1°C
Drawing capacity: 180 to 500 liters/hour
- Inlet water temperature: +15°C
- Outlet water temperature: +5°C
Tank volume: 400 L
Empty weight: 170 to 200 kg (590 to 620 kg in operation)
Electrical power (kW): 2 to 4.5
Power supply voltage: 230V-1ph-50Hz and 400V-3ph-50Hz
Options:

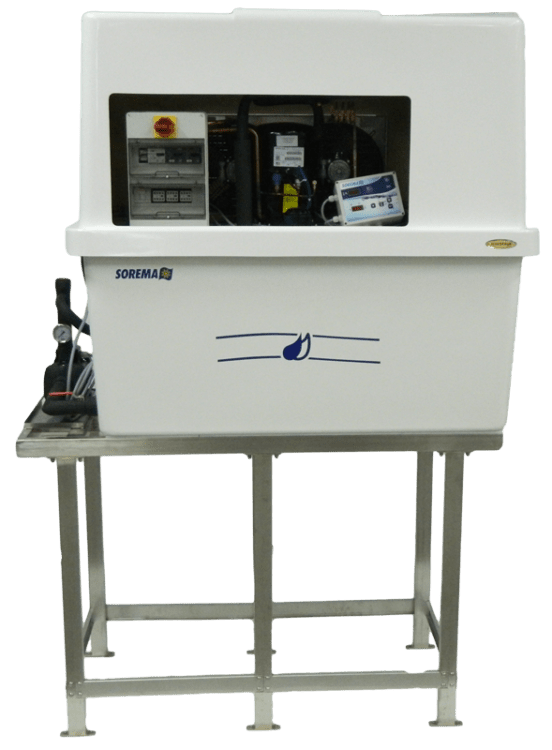

- Stainless steel frame with 15 cm legs and complete drainage
- Tropicalized version
- Glycol water version
